Your single source partner to
process bioproducts into ethanol.

Dehydration

Principle

INTERIS is a pioneer of the dehydration technology based on molecular sieves. The company owns many patents, which are real standards in the fuel bioethanol / dehydrated ethanol production.

Our reputation is based on the reliability of our units, especially the lifetime of the zeolites lasting more than 10 years.

Design of molecular sleeves dehydration systems allows a perfect integration of the dehydration unit in the distillery, achieving higher performances and lower vapour consumptions.

Specifications

  • Capacities from 10 000 l/d to 850 000 l/d
  • 2 or 4 absorbers according to capacities.
  • Column for desorption effluent concentration as an option.
  • Concentration columns of purges under pressure or
  • Possible integrated scheme with methanol column.
  • Possible adjustment of the alcohol content up to 99,99% (100ppm).
  • Color touch screen control.

Benefits

  • Low steam consumption.
  • Low pressure steam use available.
  • Exceptionnal lifetime of the zeolites.
  • No need for regular reloading.
  • Low maintenance costs.
  • Reliatibility of operation.
  • Low VOC emissions into the atmosphere.
  • High alcohol yield.
  • Low effluent discharges.

Dehydration

Principle

INTERIS is a pioneer of the dehydration technology based on molecular sieves. The company owns many patents, which are real standards in the fuel bioethanol / dehydrated ethanol production.

Our reputation is based on the reliability of our units, especially the lifetime of the zeolites lasting more than 10 years.

Design of molecular sleeves dehydration systems allows a perfect integration of the dehydration unit in the distillery, achieving higher performances and lower vapour consumptions.

Specifications

  • Capacities from 10 000 l/d to 850 000 l/d
  • 2 or 4 absorbers according to capacities.
  • Column for desorption effluent concentration as an option.
  • Concentration columns of purges under pressure or
  • Possible integrated scheme with methanol column.
  • Possible adjustment of the alcohol content up to 99,99% (100ppm).
  • Color touch screen control.

Benefits

  • Low steam consumption.
  • Low pressure steam use available.
  • Exceptionnal lifetime of the zeolites.
  • No need for regular reloading.
  • Low maintenance costs.
  • Reliatibility of operation.
  • Low VOC emissions into the atmosphere.
  • High alcohol yield.
  • Low effluent discharges.

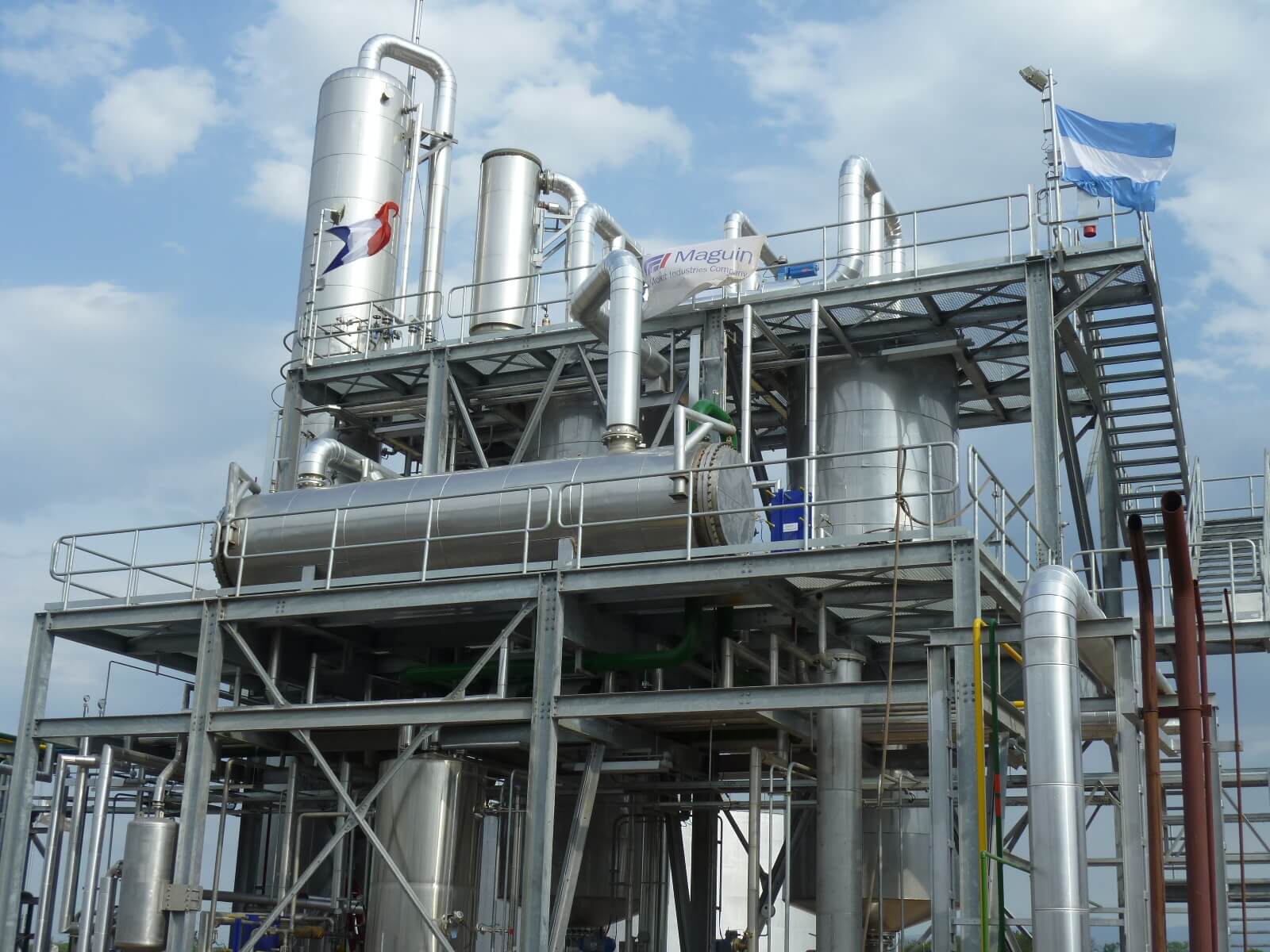

Pictures
